Brand: Verilux

Color: Black

Features:

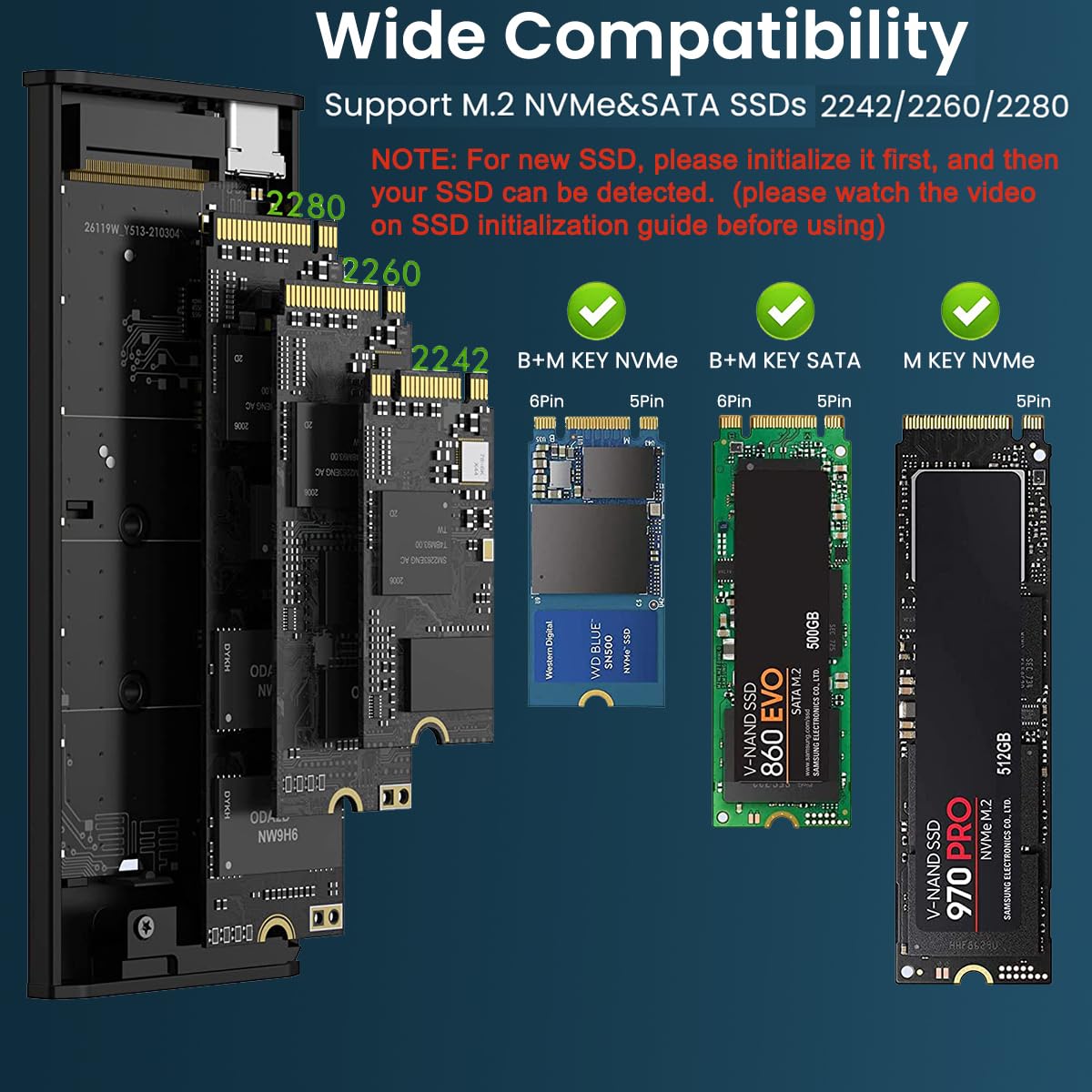

• SUPPORT M.2 NVME & SATA SSD: NOTE: Please check your SSD before purchase!!! The first time you use m.2 solid state drive SSD, you need to format the disk. Not the enclosure's problem. The M.2 SSD enclosure support dual protocol of NVME and SATA, 10Gbps NVMe M-Key / B+M Key M.2 SSD and 6Gbps SATA NGFF B+M Key M.2 SSD. DO NOT SUITABLE FOR SATA B Key SSD!!!!! Fit for the size of 2230/2242/2260/2280 up to 2TB capacity.

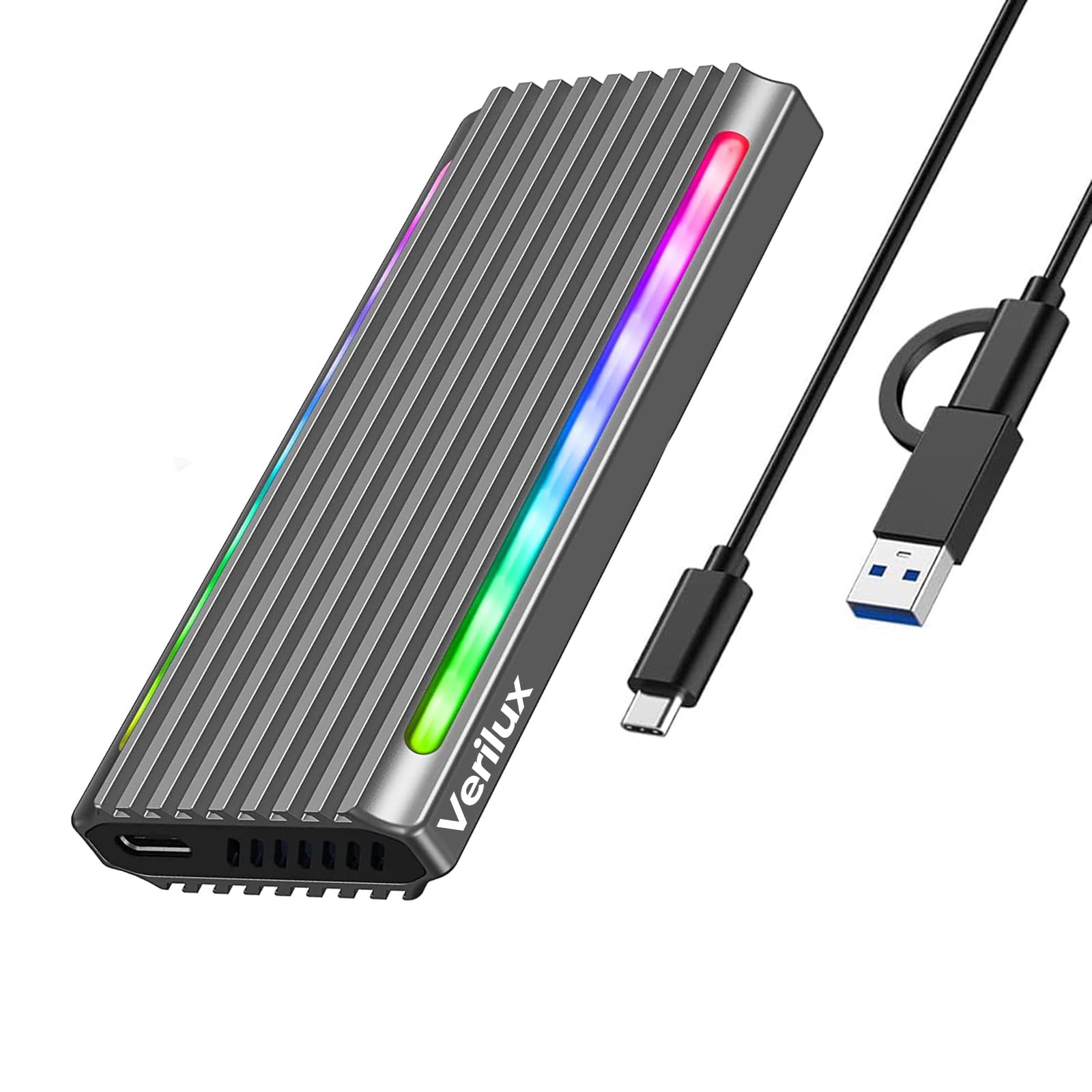

• SUPPORT USB & USB C DEVICES: NOTE: The type c interface only support phone with OTG function or laptop with Thunderbolt 3 function port. This M.2 ssd enclosure come with USB C to USB C cable; USB C to USB A cable. Offering an easy way to connect M.2 SSD with your USB-C (Thunderbolt 3 Compatible) laptops for file backup, disk upgrade, clone, data recovery and storage expansion. Support connect PCs, smart phones, laptops, smart TVs, smart routers, PS4 and other devices. Max support 2TB capacity.

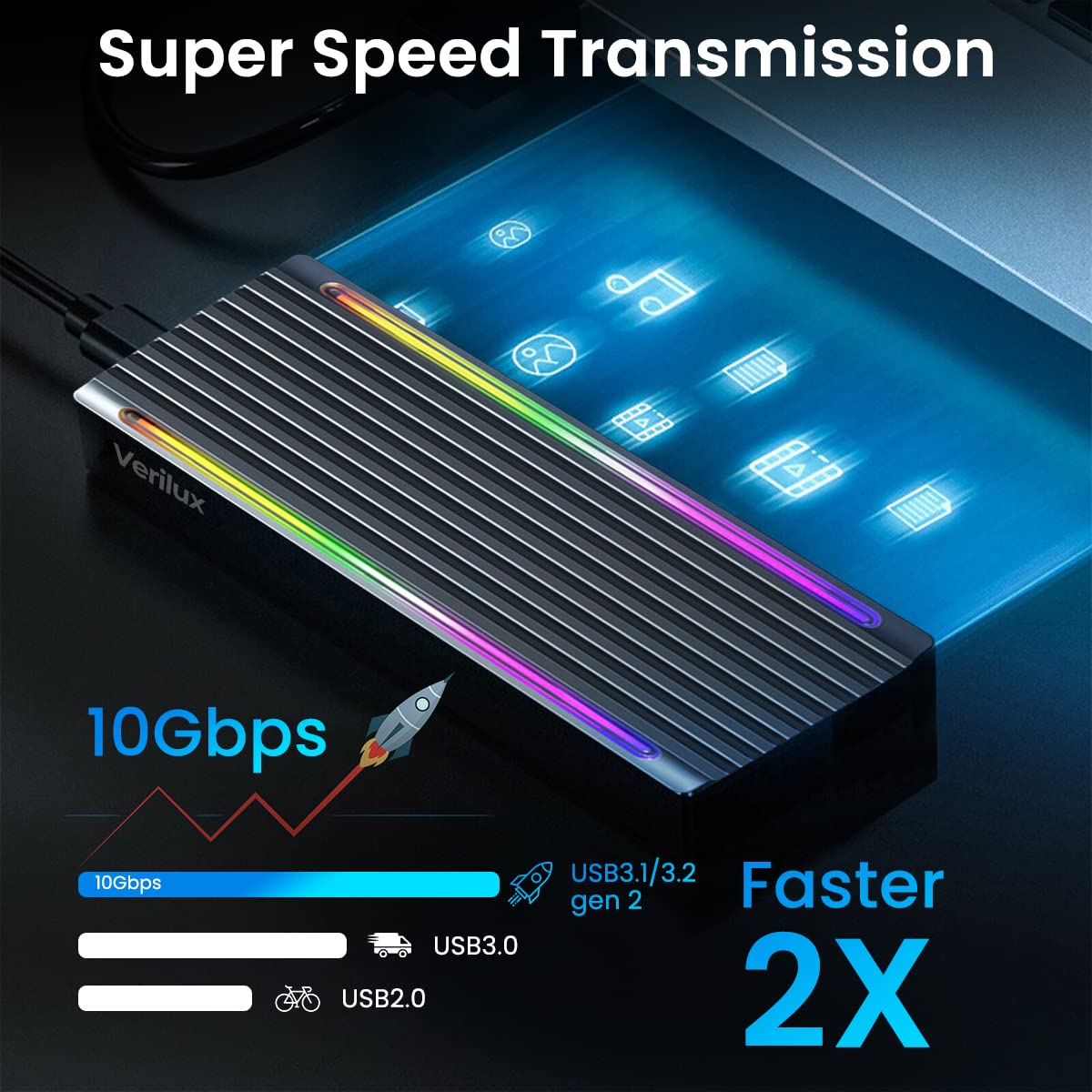

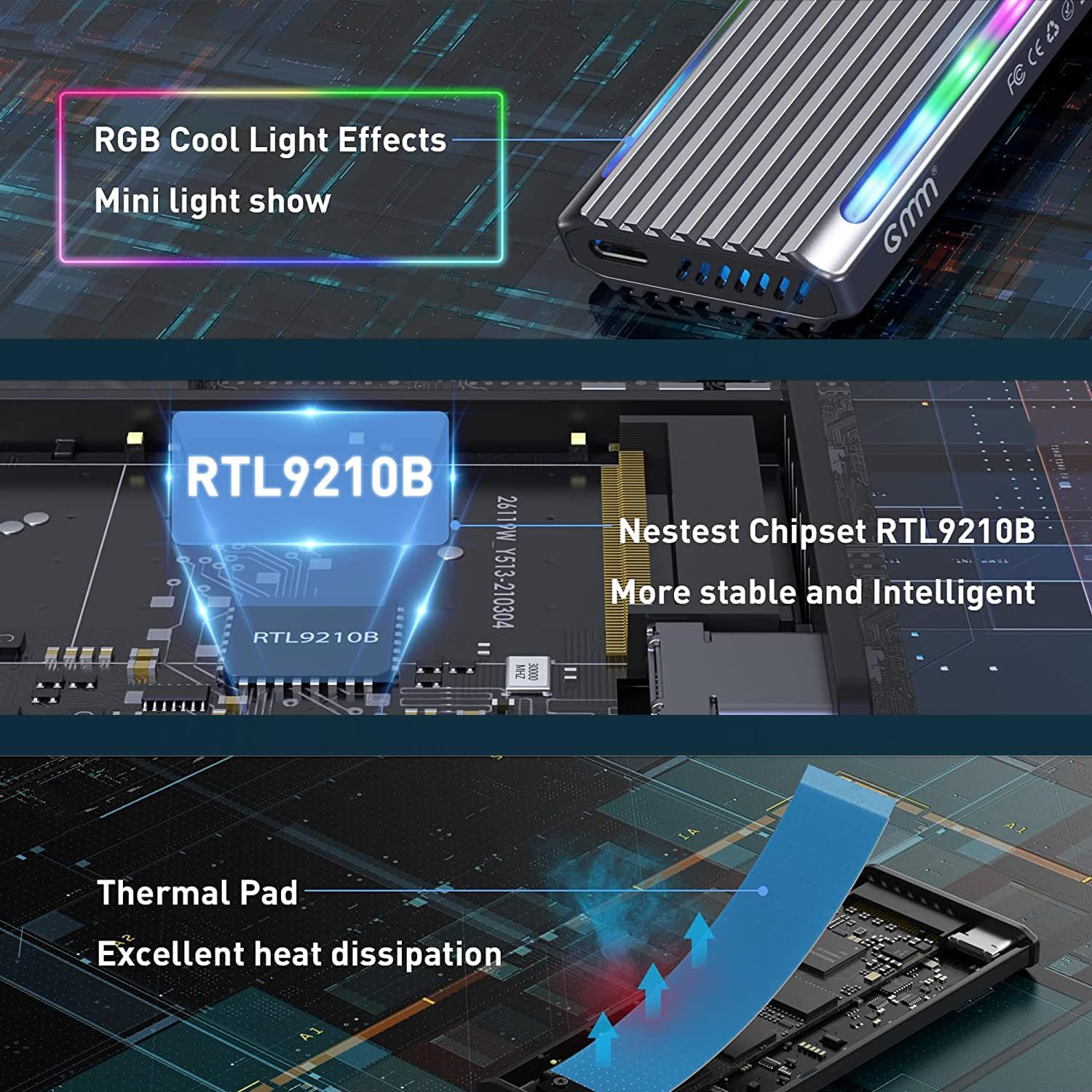

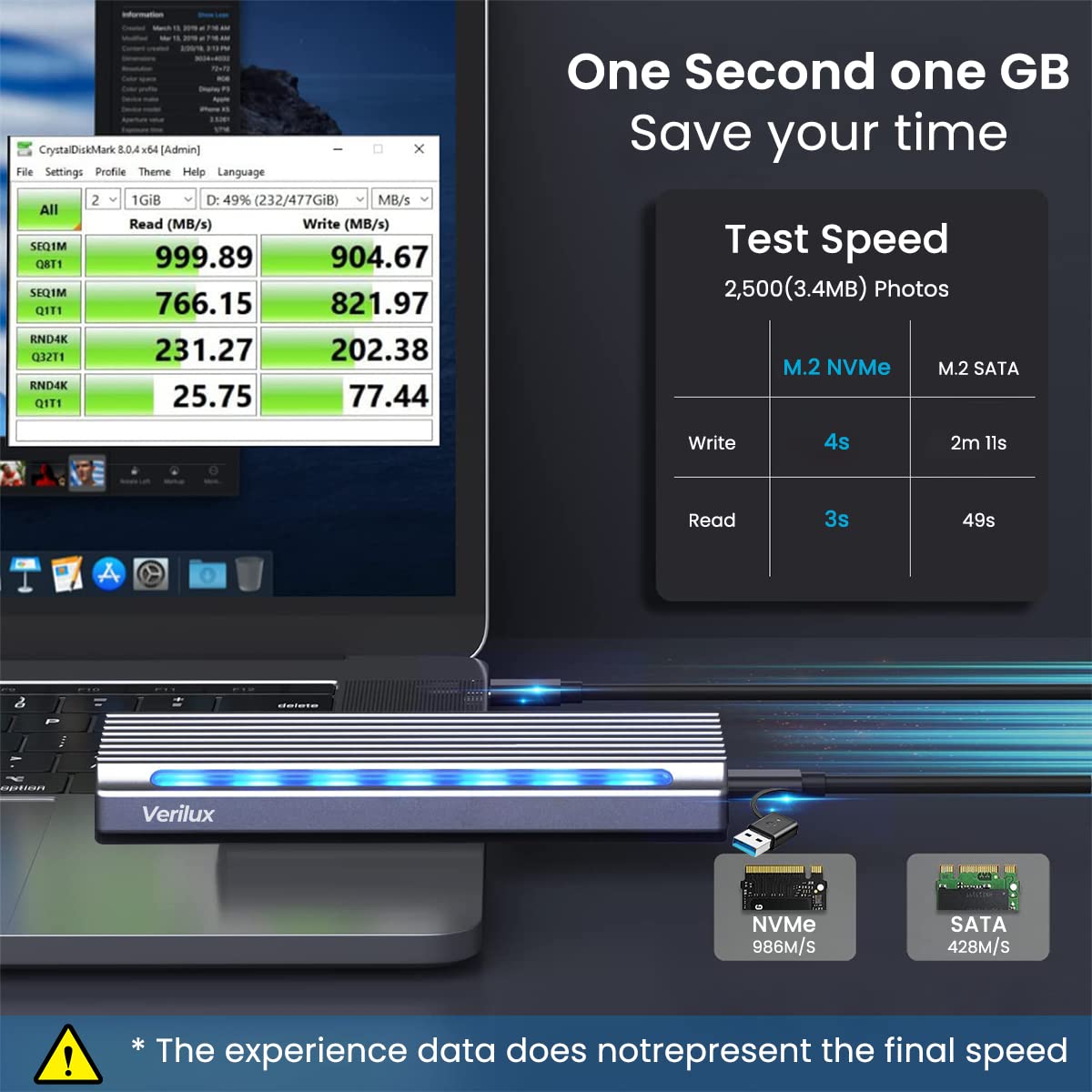

• 10GBPS HIGH SPEED READING: This nvme ssd enclosure achieves 10Gbps data transmission rate from NVMe PCIe SSD to USB-C laptops, which is faster enough to transfer 1GB files in 1 seconds. The advanced RTL9210B chip greatly ensures a stable and efficient transmission. Your NVMe SSD will perform at its best at 1000MB/s reading and writing, bringing more efficiency into your work.
• ALUMINUM THERMAL & RGB DESIGN: M.2 adapter adopts aluminum alloy shell, slim design, durable and excellent heat dissipation. Thermal pads can protect your SSD from overheating when trading large files. Besides RGB Light shows the data transfer status, cool and nice touch. 100% tools-free, NVME SATA SSD Enclosure allows quick and easy installation of your M.2 NMVe SSDs or M.2 SATA SSDs.
• PLUG AND PLAY: Just plug and play with no external drivers or software required. Compatible Multi OS, Windows 7 / 8 / 10/ 11/ Linux / Mac OS/Android. Easy connects your mobile phone(OTG function), tablet, computer and game console. No need to take another data cable with you anymore. Compact and portable.

model number: NVME&SATA

Part Number: AZBM2-0GUDBJU

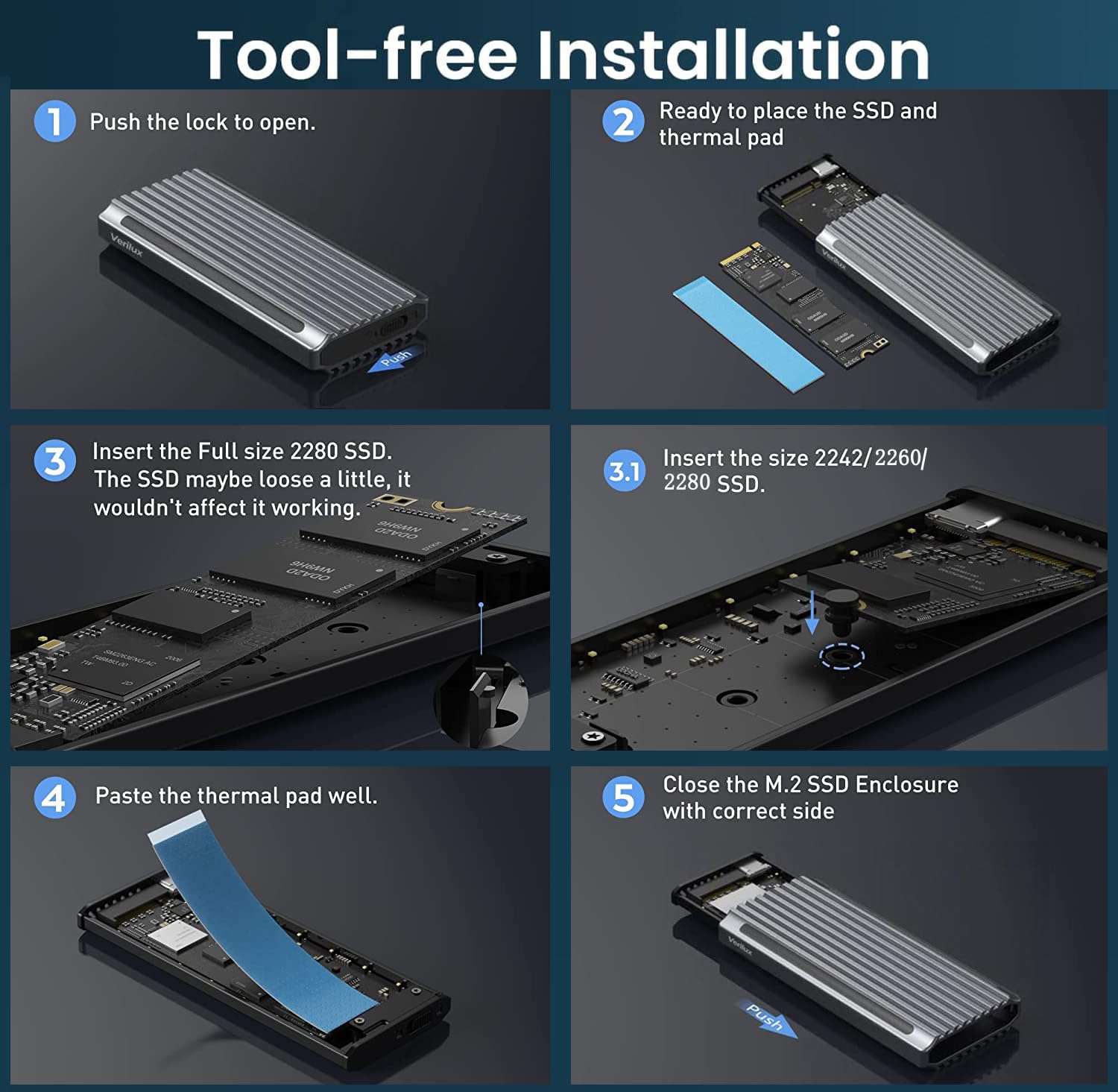

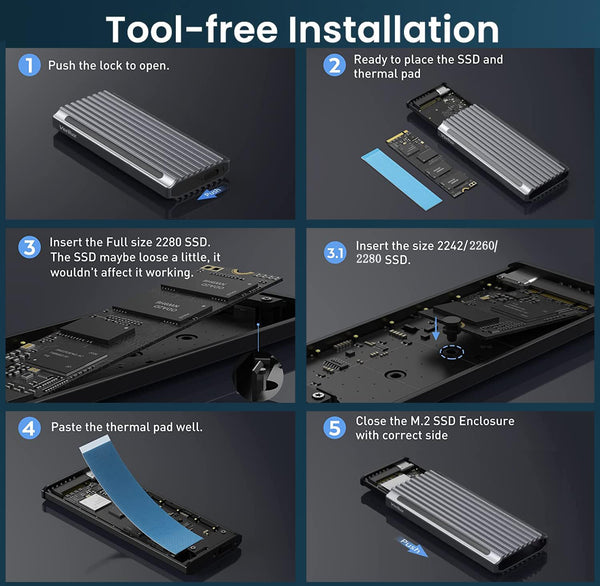

Details: How to Install your SSD: 1, Push off the top cover of type-c and pull out the black built-in motherboard. 2, align the hard disk with the card slot and put it in. 3, Insert the fixing buckle into the fixing opening. 4, install the motherboard into the top cover of the hard disk case and insert it into just push.

Why have to Initialize a New SSD before use?
By default, Windows will see and recognize your second SSD, but it won't be able to use it for anything. Before you can actually use it, you have to initialize and then format it for use with Windows. After completing this process, your new SSD will be available to use.

Here's how to set up a newly installed SSD in Windows: 1. Navigate to Control Panel > Disk Management. (Tip: In Windows 7, click the Start button, right click Computer, and choose Manage to access Disk Management.) 2. If prompted to initialize the disk, select GPT (GUID Partition Table) and click OK. (Tip: If you're using Windows 7, choose MBR (Master Boot Record).) 3. If the setup wizard starts automatically, skip to step 5. Otherwise, scroll the disk management window until you find your new SSD. 4.Right click, and select New Simple Volume. 5. Click Next. 6.Make sure the two numbers match, and click Next.(Tip: If you want to make multiple partitions on this one drive, enter the desired partition size instead of matching the numbers.) 7. Select a drive letter if you don't like the default one, and click Next. 8. Use the NTFS file system unless you have a reason to do otherwise, leave the allocation unit size as it is, enter a volume label if you desire, and click Next. 9. Verify the information, and click Finish.

Package Dimensions: 5.6 x 3.6 x 1.5 inches
